Description
Working Principle:
- Energy Absorption and Conversion: During daylight, the solar panels on the road studs absorb solar energy, converting it into electrical energy, which is stored in batteries or capacitors.
- Automatic Operation: When ambient light levels drop at night or due to bad weather, the stored electrical energy is automatically converted to light energy through LEDs, under the control of photoelectric switches.
- Visibility Enhancement: The emitted light from LEDs is very bright and flashes to capture drivers’ attention much more effectively than conventional road studs, guiding and warning them about the road layout ahead.
Installation Method:
- Location Preparation: Choose the installation location and distance, clean the road surface to ensure a flat installation area.
- Adhesive Application: Clean the bottom of the solar road stud and apply epoxy glue evenly.
- Placement and Fixation: Place the stud on the road surface, pressing down to fix it into position, and allow the glue to dry.
- Inspection: Within 2 hours of installation, check to ensure that all studs are correctly installed and there are no deformations.
- Finalization: Remove any installation barriers after 6-8 hours, allowing normal traffic flow.
Recommended Spacing:
- Highways and Expressways: Approximately 5-6 meters (7-8 yards) apart.
- Dangerous Entrances and Exits: Approximately 2-3 meters (4-5 yards) apart.
- Hospital and Parking Lot Access: Approximately 0.5-2 meters (0.5-3 yards) apart.
The spacing may be adjusted according to specific site conditions and requirements.
Applications:
These road studs are versatile and can be used in various locations for improved safety and guidance, including:
- Urban Roads: Enhances driver awareness and road visibility in city settings.
- Parking Lots: Marks lanes and boundaries, assisting in safer navigation.
- Gardens and Roadsides: Provides ambient lighting while marking pathways and boundaries.
Key Features:
- Durability and Longevity: Designed to last more than 10 years with a robust power capacity and the ability to withstand outdoor conditions.
- Efficient Energy Use: The studs recharge during the day and can operate for extended periods (180 hours flashing mode, 40 hours steady mode) even in foggy or rainy conditions.
- Customization: Offers OEM/ODM capabilities to meet specific customer needs.
- Reliability: Tested to function normally for over 3 years under typical conditions.
Specification :
| Product Name | solar road stud |
| Body material | Hi-pressure Casting Aluminium alloy |
| Power supply | Mono crystalline solar panel 2.5V/0.25W |
| Battery | NI-MH 1.2V/ 600mah or Lithium battery (high temperature resistance); |
| LED | Ultra bright diameter 5mm 6pcs |
| LED color | Red, Yellow, Green, Blue, White |
| working mode | Recharging at day and working automatically at night |
| Working hours | (1).Blinking:140hours for NI-MH battery; (2).Constant:40hours for NI-MH battery; |
| Life span | 2years for NI-MH battery; |
| Visual distance | >800m |
| Water proof | IP68 |
| Resistance | >20T |
| Size | L114*W129*H23mm/122*104*23mm+53mm |
| Package: | 2pc/box;60pcs/ctn |

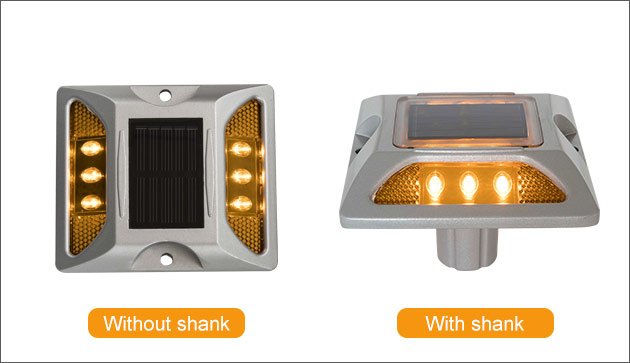

| Carton Size: | Without shank: 2pcs/box; 60pcs/ctn; Weight: 21kgs; Carton size:58.5*24.5*18.5cm (2pcs/box; 60pcs/ctn; Weight: 46.30bs; Carton size:23.03″*9.65″*7.28″) With shank: 1pcs/box; 45pcs/ctn; Weight: 18.5kgs; carton size: 56.5*34.8*23.6cm (1pcs/box; 45pcs/ctn; Weight: 40.79bs; Carton size:22.24″*13.70″*9.29″) |
| Certificate | CE;ROHS;IP68 |
