Introduction to Solar Road Studs: Solar road studs, also known as cat eyes, are innovative devices that significantly enhance road safety. They are particularly effective at regional rail crossings, intersections, and other critical areas by providing guidance and hazard warnings, especially under poor visibility conditions such as darkness or bad weather. These devices harness solar energy, thereby reducing environmental impacts and operational costs.
Manufacturing Excellence: With over 15 years of manufacturing experience, our solar-powered cat eyes are competitively priced and recognized globally for their quality and durability. We offer a wide range of cat eye road markers to meet diverse requirements in the traffic road safety market.
Working Principle:
- Daytime: Solar panels on the studs absorb sunlight, converting it into electrical energy, which is then stored in the built-in batteries or capacitors.
- Nighttime or Poor Weather Conditions: The stored electrical energy is automatically converted into light energy through LEDs, controlled by photoelectric switches. This process starts automatically at dusk or during inclement weather, providing bright, flashing lights that effectively alert drivers.

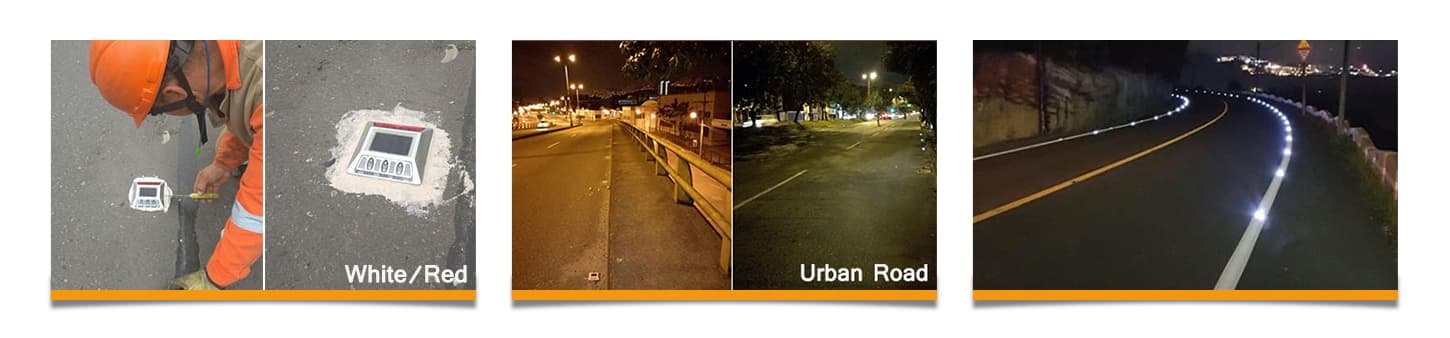

Installation Guide for Raised Solar Road Stud:
- Marking and Drilling: Identify and mark the placement spots. Using a core drill, create holes of 35mm in diameter and 55mm in depth.
- Cleaning: Remove all debris from the drilled holes.
- Applying Epoxy: Pour epoxy into the holes as per the manufacturer’s instructions, ensuring the holes are straight and adequately sized for the epoxy to surround the stud shaft.
- Setting the Stud: Place the solar stud into the hole, adjusting the angle for optimal visibility. Ensure that the epoxy adheres evenly and that the bottom of the stud is in firm contact with the installation surface, preventing any surface float.
- Curing: Allow the epoxy to cure for 6-8 hours before removing any installation barriers.
Recommended Spacing:
- Highways and Expressways: 5-6 meters (7-8 yards)
- Dangerous Entrances and Exits: 2-3 meters (4-5 yards)
- Hospital and Parking Lot Access/Exits: 0.5-2 meters (0.5-3 yards) Note: Adjust the spacing based on specific site conditions and requirements.

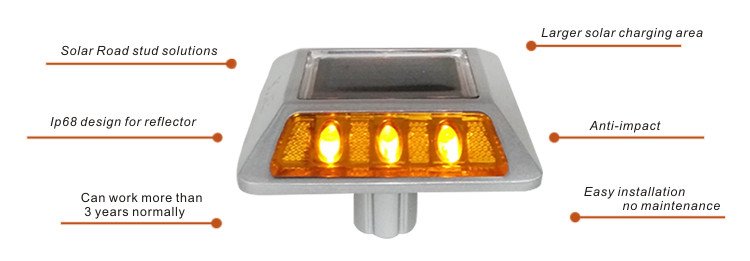

Key Features and Characteristics:
- Longevity: Designed to last more than 10 years with a super power capacity.
- Automatic Operation: Charges during the day and operates automatically at night or during bad weather.
- Working Duration: Capable of up to 180 hours in flashing mode and 40 hours in steady mode after a full charge, suitable for use in foggy or rainy conditions.
- Customization: Accepts OEM/ODM to tailor products to specific needs.
- Application: Ideal for placement along the edge lines of roads and pavements.
- Durability: Function effectively for more than 3 years under normal conditions.

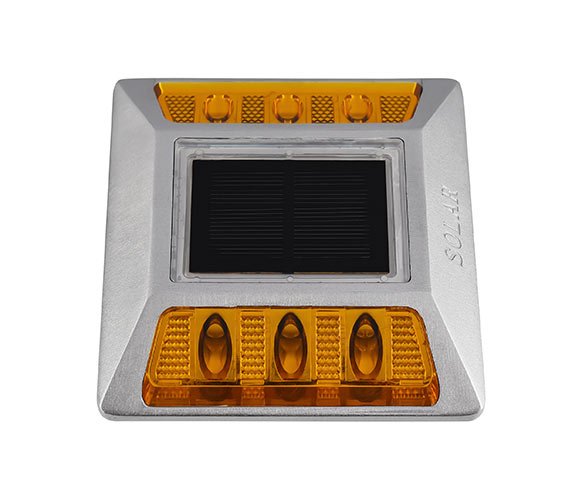

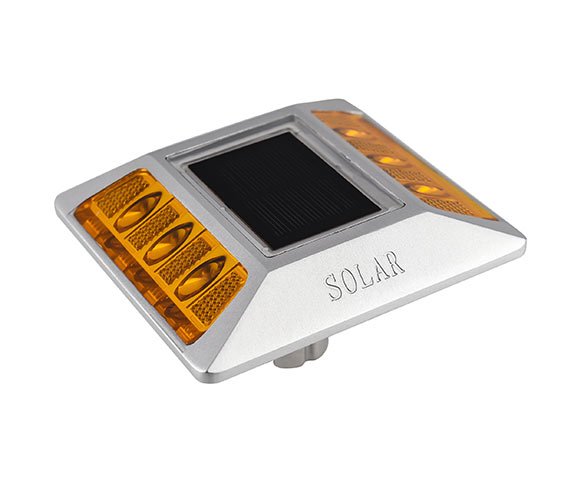

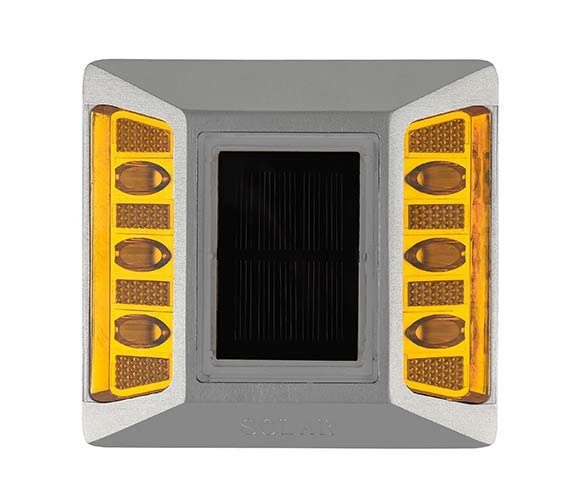

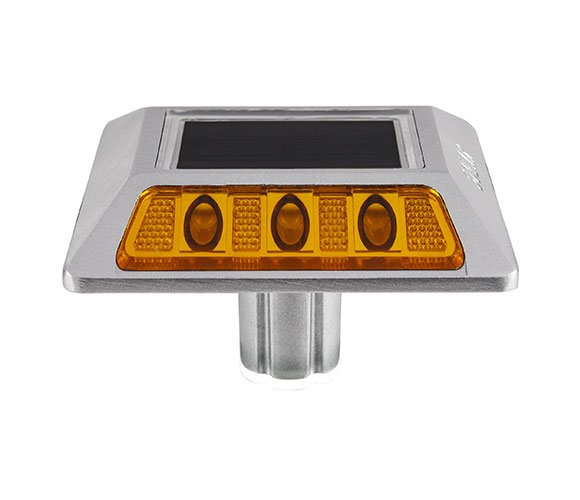

Specification :
| Body material | Hi-pressure Casting Aluminium alloy |
| Power supply | Solar panel(Monocrystalline 2.5V /0.2W) |
| Battery | NI-MH1.2V/800MAH or Super capacitor(120F) |
| LED | Ultra bright diameter 5mm; 6pcs(double side) |
| LED color | Red,Yellow,Green,Blue,White |
| working mode | Recharging at day and working automatically at night |
| Flashing mode | Blinking or constant(flashing frequency 2Hz, also can be made according to your requirements) |
| Working hours | Fully charge at 8hours and can working 120hours continuously |
| Water proof | IP68 |
| Visual distance | >800m |
| Life span | >3years |
| Load capacity | >20T |
| Size | L123*W133*H22mm+55mm (L4.84″*W5.24″*H0.87″+2.17″) |
| Working temperature | -40~85 °C |
| Package: | 1pcs/box; 45pcs/ctn; weight: 31kgs; Carton size: 66.5*44*28cm (1pcs/box; 45pcs/ctn; weight: 68.34bs; Carton size: 26.18″*17.32″*11.02″) |
