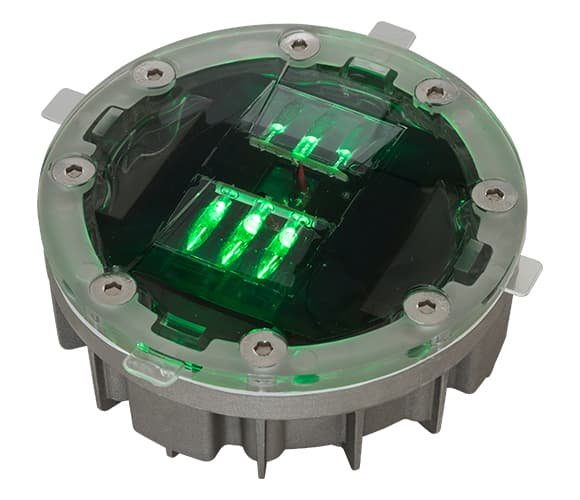

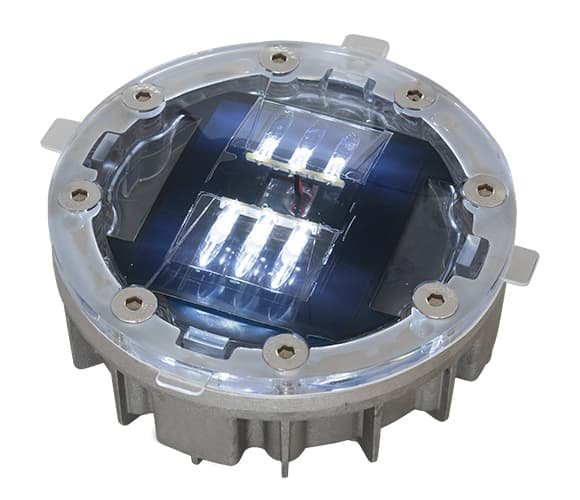

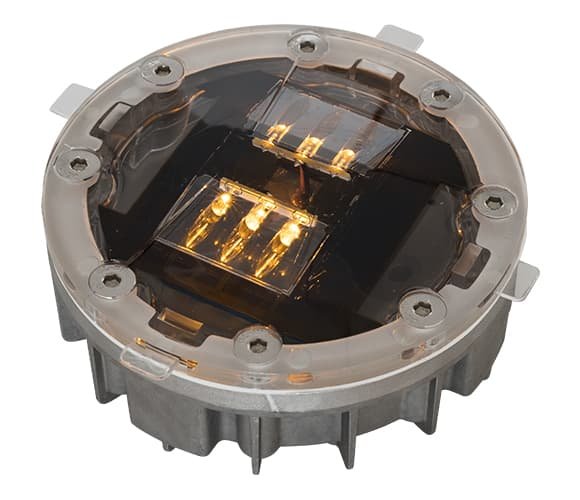

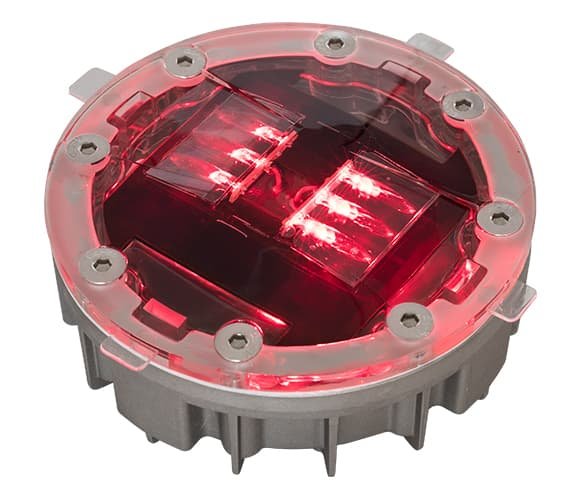

Overview of Embedded Solar Road Studs

Description

Design and Materials:

• Base Material: Made from cast aluminum, this provides robustness and durability suitable for road use.
• Surface Treatment: The surface employs plastic spraying technology to increase resilience and longevity.
• Shell: Composed of reinforced PC material, which offers excellent impact resistance and heat stability.
• Load Capacity: Capable of supporting more than 40 tons, making them ideal for installation in the middle of high-traffic roads.

Working Principle:

• Energy Conversion: Equipped with solar panels that absorb sunlight and convert it into electrical energy, which is stored in batteries or capacitors.
• Automatic Illumination: At night or during poor visibility conditions, the stored energy is automatically transformed into light by LEDs (controlled by photoelectric switches), improving road visibility.
• Safety Enhancement: The bright flashing LEDs effectively capture drivers’ attention, significantly earlier than traditional road studs.

Installation Method:

1. Marking and Drilling: Determine and mark the placement distance, then use a Core Drill to drill a hole of 127mm diameter and 45mm depth.
2. Prepare the Installation Site: Clean all debris from the installation hole.
3. Securing the Stud: Pour epoxy into the hole as per the manufacturer’s instructions, ensuring the hole is straight and large enough for the epoxy to envelop the solar road stud shaft.
4. Setting Angle and Curing: Adjust the lighting surface to the desired angle. Verify that the epoxy adheres evenly, then allow it to cure for 6-8 hours before removing any isolation barriers.

Recommended Spacing:

• Highways and Expressways: 5-6 meters (7-8 yards)
• Dangerous Entrances and Exits: 2-3 meters (4-5 yards)
• Hospital and Parking Lot Access: 0.5-2 meters (0.5-3 yards)

These recommendations can be tailored based on specific road conditions and requirements.

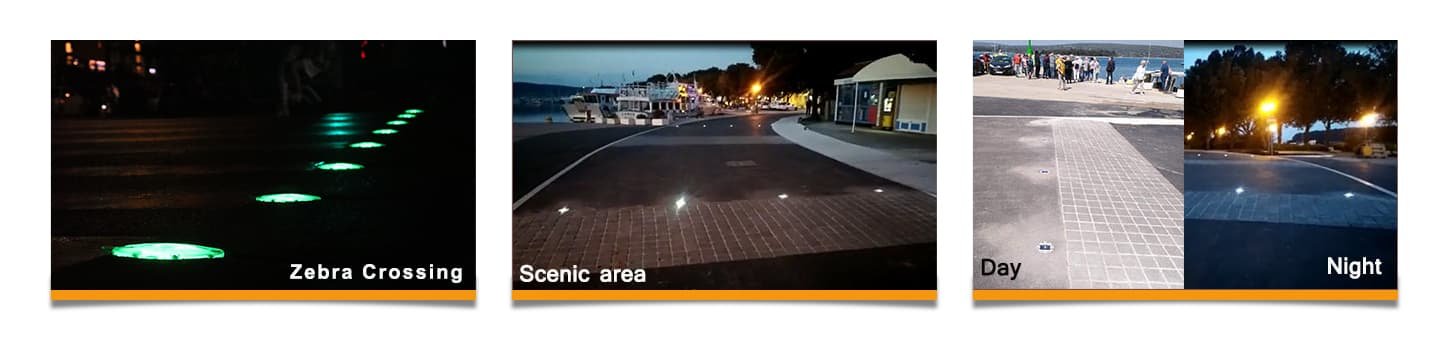

Applications:

• Versatile Use: Ideal for highways, expressways, urban roads, parking lots, and other public areas needing enhanced visibility.
• Global Use: Especially popular in regions prioritizing environmental sustainability and energy efficiency in road safety solutions.

Key Features and Characteristics:

• High-Quality Materials: Durable aluminum alloy base with a high-transparency PC cover.
• Efficient Solar Panels: Features a USA brand flexible solar panel known for its high conversion and charge efficiency.
• Advanced LED Technology: Employs high-brightness bullet LEDs for superior visibility.
• Stable Electronics: Equipped with a programmable PCB for enhanced component stability.
• Customization: Available for OEM/ODM to meet diverse client specifications.

Specification :
