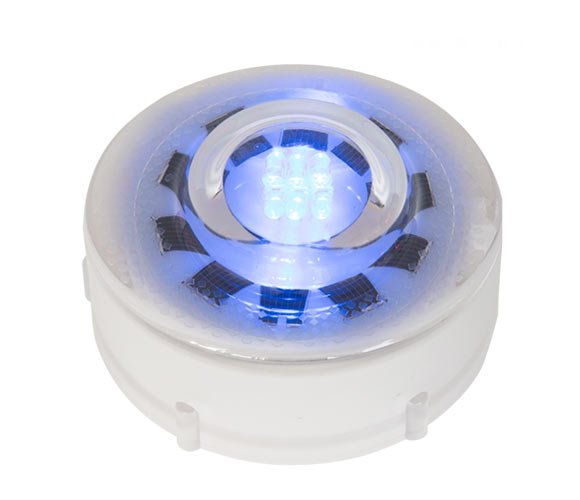

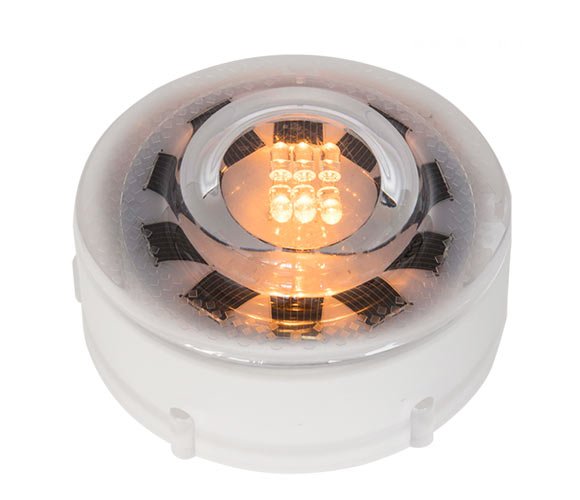

Overview of Embedded Solar-Powered Road Studs

Description

Features:

• Environmental Friendliness: Solar road studs use solar energy, significantly reducing environmental impact and operational costs.
• Enhanced Safety: Equipped with bright, flashing LEDs that alert drivers earlier than traditional road studs, thereby improving reaction time and reducing accidents.

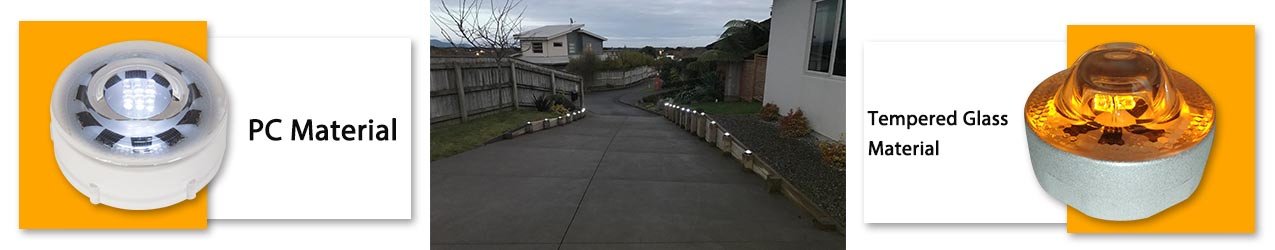

• Durability and Efficiency: The use of tempered crystal glass and energy-efficient LEDs ensures durability and low power consumption.

Working Principle:

• Daytime: Solar panels on the studs capture sunlight and convert it into electrical energy, which is stored in internal batteries or capacitors.
• Nighttime or Inclement Weather: Stored electrical energy is automatically converted into light energy by LEDs through a photoelectric switch. This conversion helps illuminate the road effectively, guiding drivers safely.

Installation Method:

1. Marking: Measure and mark the correct distances where each stud will be placed.
2. Drilling: Use a core drill to create holes of approximately Φ108mm and a depth of 50mm.
3. Cleaning: Remove debris from the drilled holes to prepare for installation.
4. Epoxy Application: Fill the holes with epoxy as per the manufacturer’s instructions to ensure a secure fit.
5. Setting: Place the solar road stud in the hole, adjusting it to the desired viewing angle. Ensure the epoxy evenly surrounds the stud’s shaft for stable installation.
6. Curing: Allow the epoxy to set for 6-8 hours before removing any installation barriers or isolation measures.

Recommended Spacing:

• Highways and Expressways: Approximately 5-6 meters (7-8 yards)
• Dangerous Entrances and Exits: Approximately 2-3 meters (4-5 yards)
• Hospital and Parking Lot Access: Approximately 0.5-2 meters (0.5-3 yards)

Characteristics:

• No UV/IR Radiation: Ensures the light emitted is safe with no ultraviolet or infrared radiation.
• Energy Efficiency: Consumes only 20% of the power compared to halogen and incandescent lamps.
• High Durability: Made with tempered crystal glass for superior resistance and longevity.
• Safety Features: Includes a specially designed constant current driver with open or short circuit protection, enhancing overall safety and stability.

These solar road studs are ideal for a wide range of applications, particularly in places where visibility and safety are paramount. Their innovative design and energy efficiency make them a smart choice for modern traffic management and roadway safety enhancements.

Specification :
