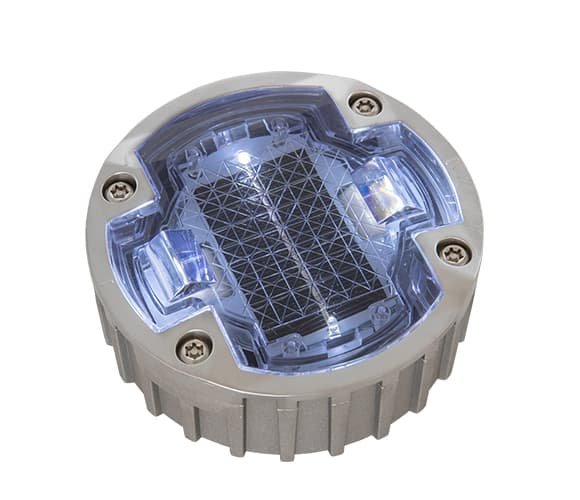

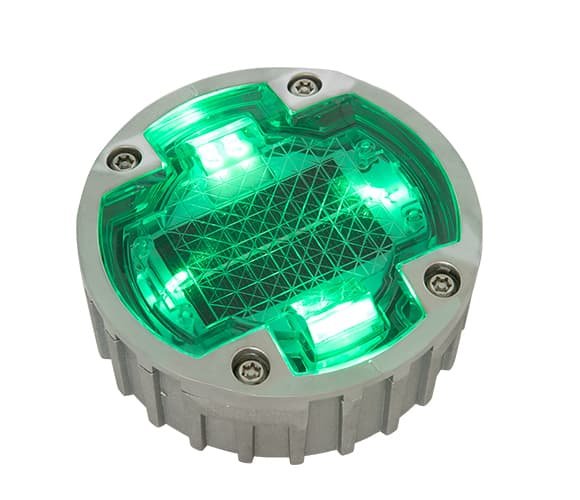

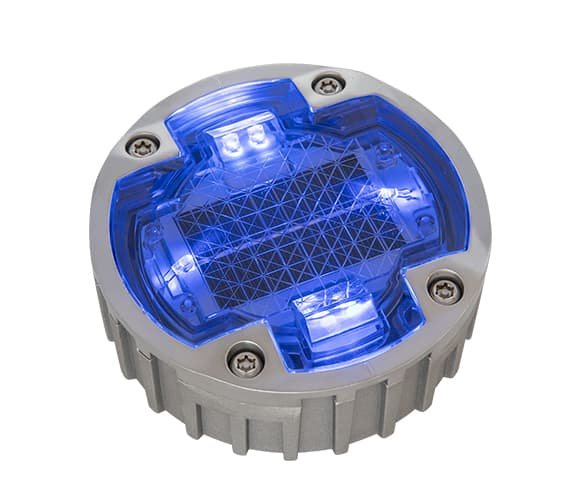

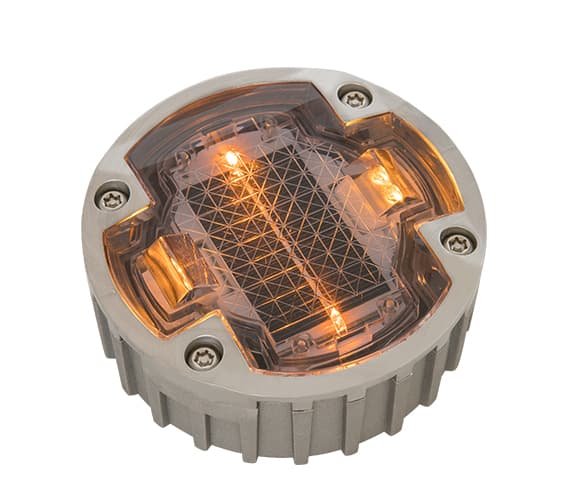

Introduction to Embedded Solar Stud Markers

Description

Design and Materials:

• Base Material: Constructed from cast aluminum for strength and durability.
• Surface Treatment: The surface employs plastic spraying technology which enhances its resistance against weather elements and mechanical wear.
• Shell: Made of reinforced PC material known for its superior impact resistance and heat stability.
• Load Capacity: These studs can support over 30 tons, making them suitable for use in the middle of roadways where high traffic is common.

Working Principle:

• Solar Energy Conversion: Solar panels on the studs absorb sunlight during the day, converting it into electrical energy stored in batteries or capacitors.
• Automatic Illumination: At night or during poor weather conditions, the stored electrical energy is automatically converted into light through LEDs. This process is controlled by photoelectric switches.
• Visibility and Safety: The emitted bright, flashing light significantly enhances road visibility, guiding drivers and reducing the risk of accidents.

Installation and Spacing:

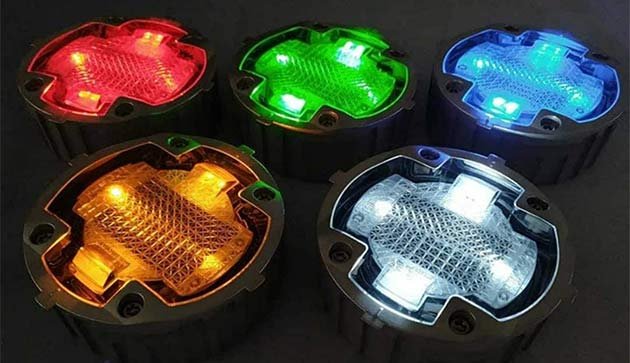

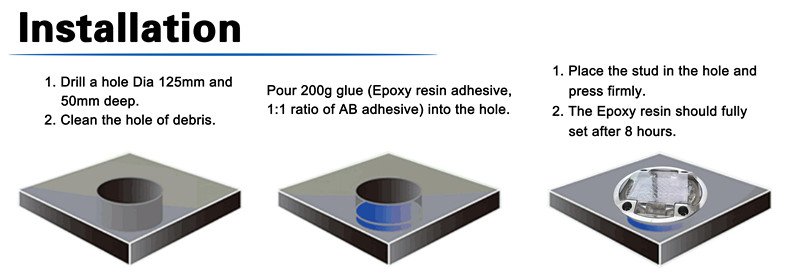

• Installation: The NK-RS-X6 is typically embedded into the roadway using a core drill to create a fitting hole, followed by setting with epoxy to secure the stud in place.
• Spacing Recommendations:
  • Highways and Expressways: 5-6 meters (7-8 yards)
  • Dangerous Entrances and Exits: 2-3 meters (4-5 yards)
  • Hospitals, Parking Lots, etc.: 0.5-2 meters (0.5-3 yards)

  These are general guidelines and can be adjusted based on specific site conditions and requirements.

Applications:

• Broad Applicability: Suitable for a variety of locations including major motorways (highways, expressways, skyways), urban roads, parking lots, airports, and other public places where enhanced visibility and safety are required.
• Philippine Use: Particularly popular in the Philippines, for example, along Roxas Boulevard, showcasing its effectiveness in diverse environmental conditions.

Key Features and Characteristics:

• Durable Materials: Aluminum alloy base with a high-transparency PC cover.
• High-Efficiency Solar Panel: Equipped with a USA brand flexible solar panel known for its high conversion and charging efficiency.
• LED Technology: Utilizes high-brightness bullet LEDs for superior visibility.
• Programmable PCB: Ensures high stability of the internal electronic components.
• Customization: Available for OEM/ODM to meet specific client needs and specifications.

These solar road studs represent a significant technological advancement in traffic safety, combining environmental sustainability with practical roadway illumination solutions. By harnessing solar power, they reduce environmental impact and provide a cost-effective, maintenance-low safety feature for roadways around the globe.

Specification :
